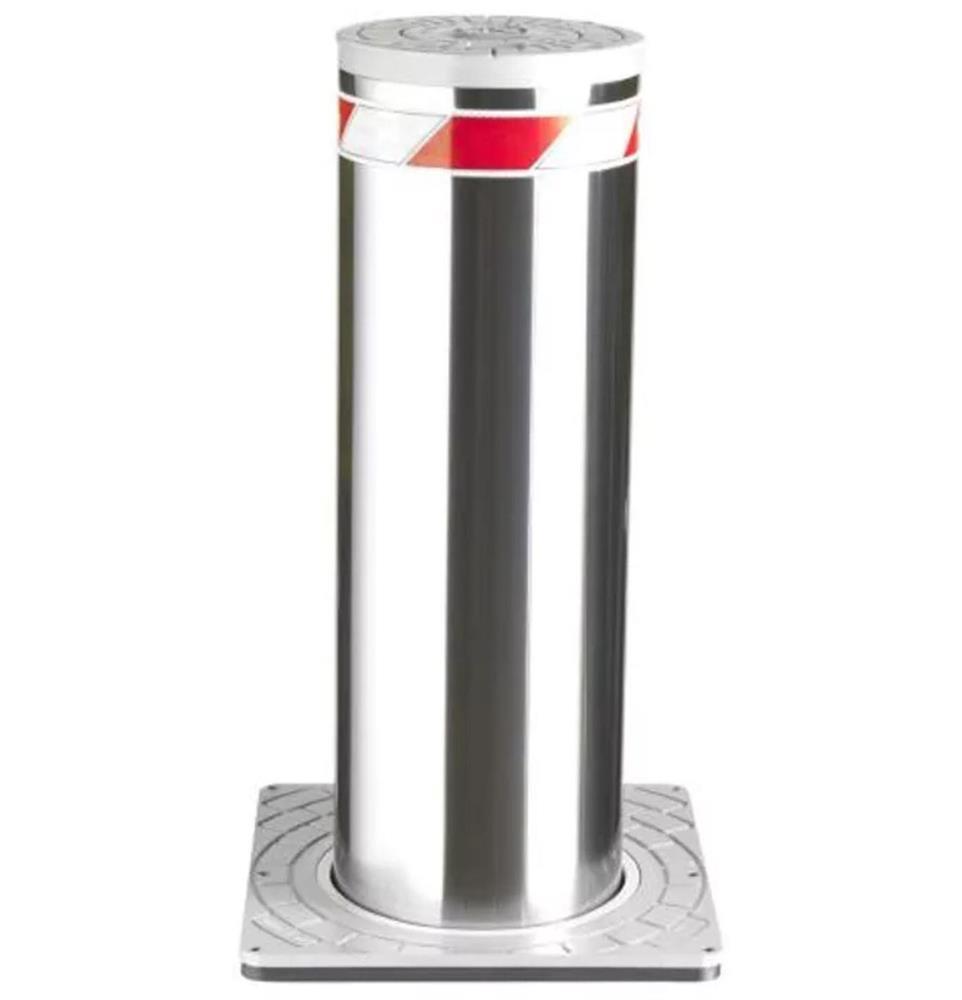

Automatic rising bollard is an electric-hydraulic-mechanically operated rising bollard system. The system can be quickly and easily operated. It is suitable for both security and access control applications.
- Moving Cylinder AISI 304 Stainless Steel
- Moving Cylinder Diameter 220 mm
- Moving Cylinder Height 600 mm
- Moving Cylinder Steel Thickness 6 mm
- Moving Cylinder Steel Finish Brushed
- Reflective Stripe Height 55 mm
- Rising Speed 15 cm/sec
- Lowering Speed 25 cm/sec
- Manual Emergency Lowering Yes
- Safety Pressure Switch Yes
- Connection Cable to Control Unit Standard 10M (Max 80M)
- Hydraulic Pump Bulid-in to bollard
- Protection Grade IP67
- Impact Resistance 30,000J
- Breakout Resistance 150,000J
- Life Average 3,000,000 –2,000 Movements Per Day
- Operating Temperature- 40C-+60C
